Fully Automatic Strapping Machines- Offline

In today's fast-paced manufacturing environment, efficiency and safety are paramount. YAKTECH, a leading manufacturer and supplier of packaging solutions in India, offers a game-changing solution: Fully Automatic Strapping Machines.

What is a Fully Automatic Strapping Machine?

High-table automatic strapping machine adopt film, durable, efficient mechanism as main body, human-machine interface, PLC and fully digital manipulation to ensure easy size changeover and stable running.

Due to special design of strap feeding and withdrawal track, more straps are applicable and packing cost is lowered greatly, Oil-free maintenance, firm strapping, high speed and long use life. It can be single-unit operation or equipped onto the production line

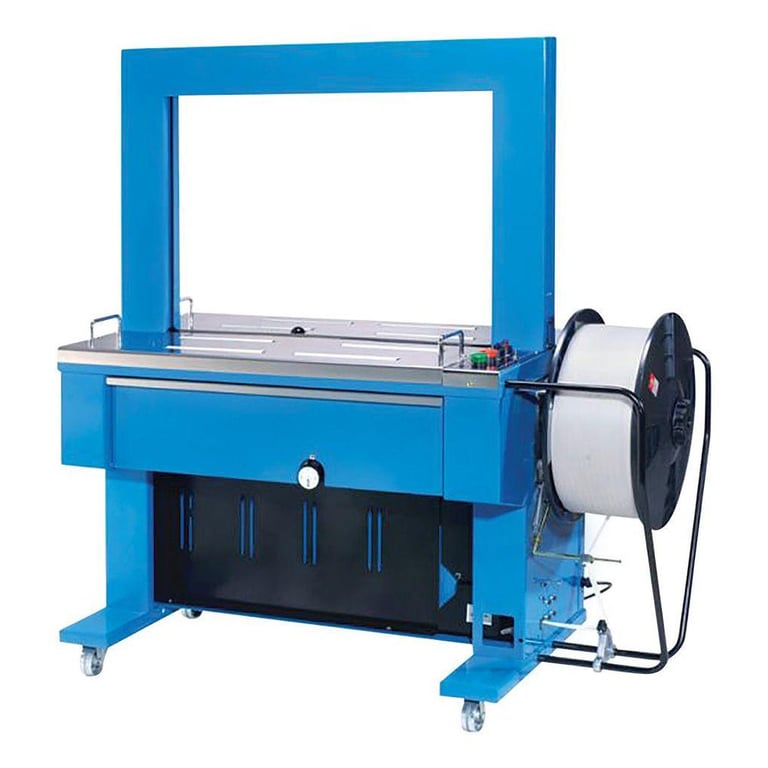

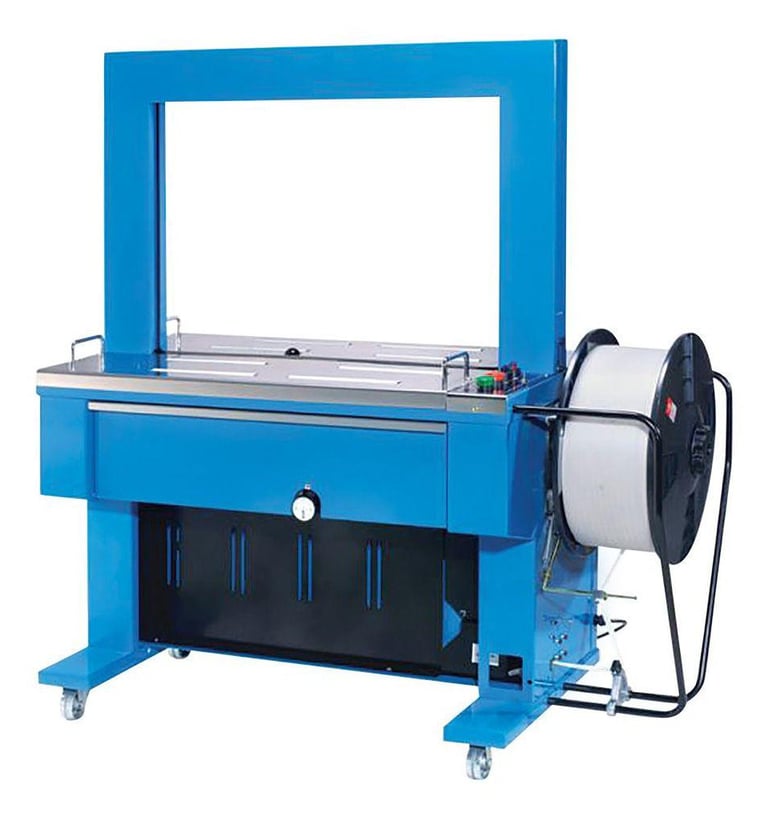

2.1.Automatic offline strapping- Model -Extend YK 101

Strapping Machine High Volume Operation

DUAT: High Speed Automatic Strapping Machine

• Unique design

• Up to 55 straps per minute

• Suitable for printed medias and corrugated carton boxes

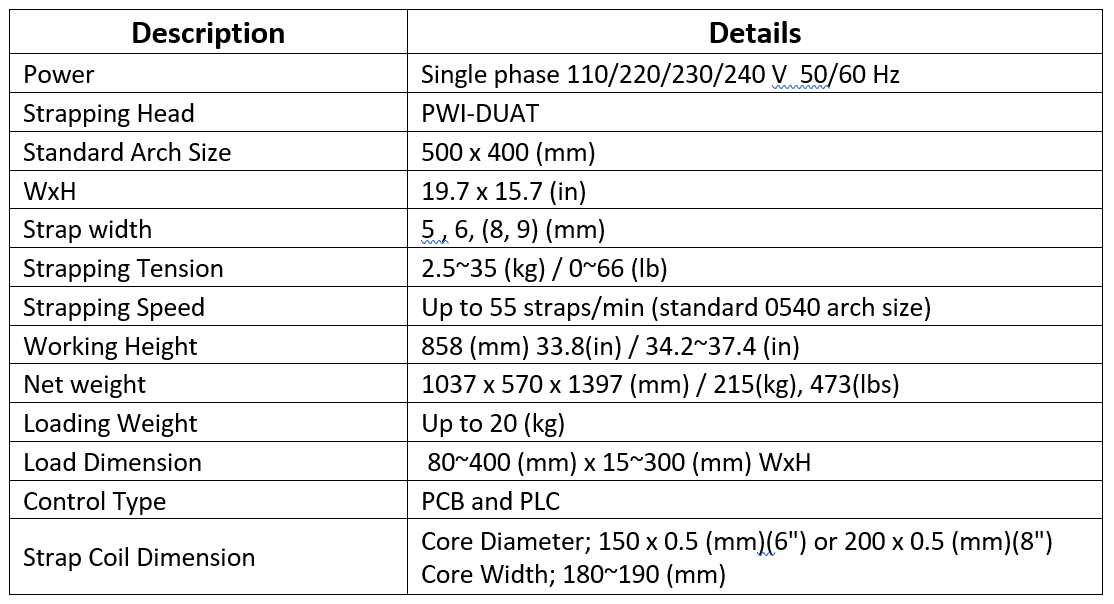

Specifications

Features & Machine Description

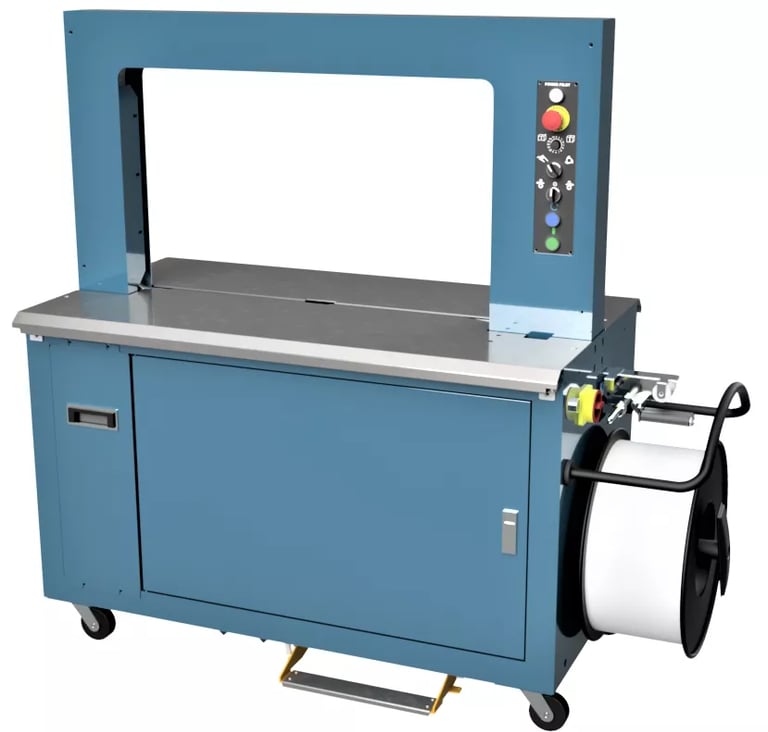

2.2. Packway Model PW-DUAT Series

• Stainless steel heating element, designed for faster heating time and longer operational time (NEW)

• Feed / Reverse switch for strap short feed that requires re-feed (NEW)

• Strap arch (open /close) push button via reset button to remove miss-feed strap or end of strap

• Power Indicator light

• Emergency Button

• Adjustable strap tension switch via control panel

• Manual strapping via push button control panel

• Easy accessibility and disassembly of strap path components for periodic maintenance or removing jammed strap (NEW)

• Electromagnetic dispenser brake

• Flexible foot switch

• Safety door switch

Mechanical Aspect:

• Auto loop ejector

• UPE Arch

• Ergonomic strap threading

• Strap-end remover with open arch function

Application

Mechanical Aspect:

• Metal Sheet Baffle for bundling corrugated boxes

• Custom UPE-Arch size

• Foot Screw

• Roller Table Top

• Extension foot switch for arch size below the width of 800 mm.(Standard for above 800 mm)

Special Needs:

• Stainless steel structure SUS #304

Features

Mechatronic Aspect:

• Logic relay control

• Sensors for automatic strapping

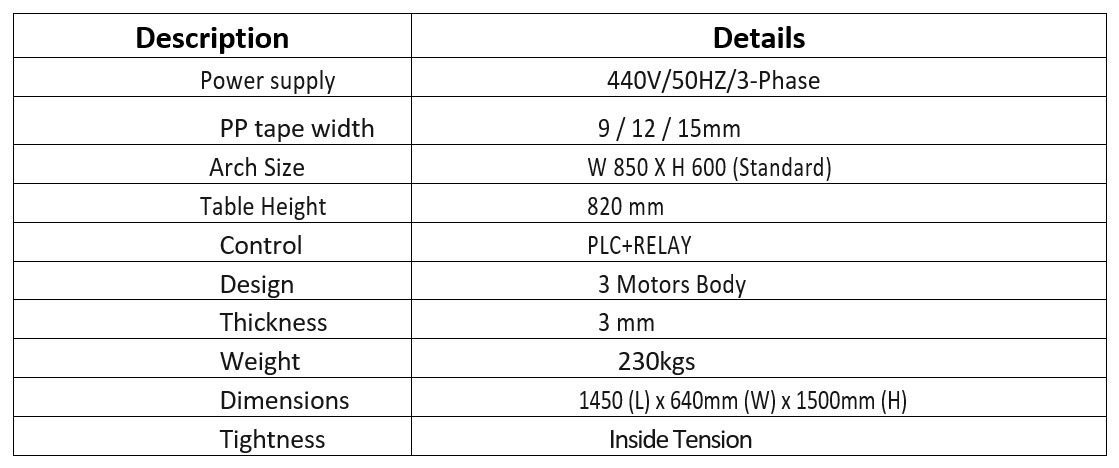

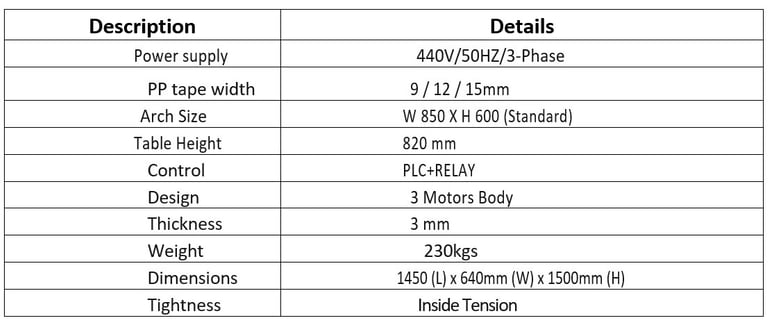

Specifications

Features & Machine Description

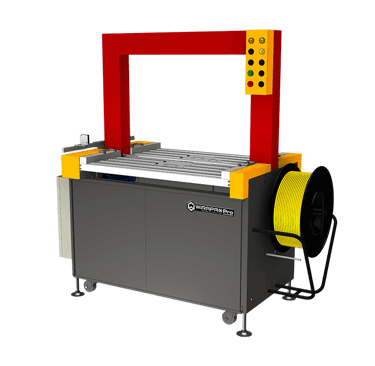

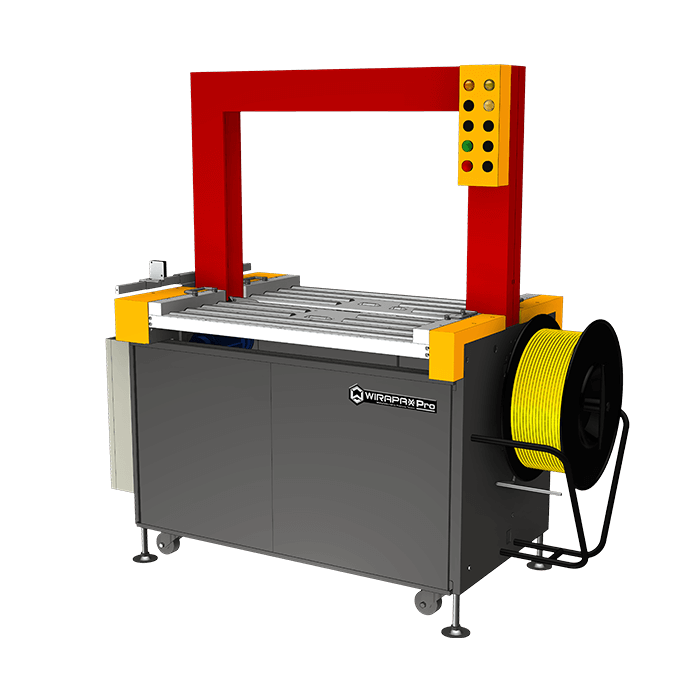

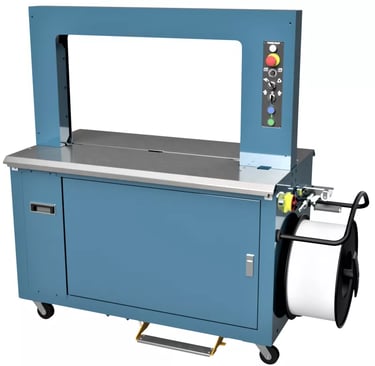

2.2. Fully Automatic Strapping Machine- Packway Model- PW-0860AS2R

Mechanical Aspect:

• Strap dispenser with belt brake

• Foldable Roller Table

• Mechanical Tension adjustment

• Double cams for long lasting machine operation.

• New generation heating element suitable for PP and PET strap use, requires less initial heating time.

• Reinforced strap feed shooter structure gives much longer operation time before changing it.

Application

Mechatronic Aspect:

• PLC control integration

• Detection for strap feeding not to strap position

• Detection for no strap

• PET strap sealing

• Single Phase 1Ø , 110/220, 50/60Hz

• Enhanced PCB for faster cycle speed. (up to 36 straps per minute)

Mechanical Aspect:

• Pneumatic top press mechanism (Tighter strapping)

• Other arch size made on request

• PET strap

• Dispenser I.D. 9" (230mm)

• Extension conveyor

• Casters with brake

Special Needs:

• Stainless steel structure SUS #304

Why Choose YAKTECH?

YAKTECH is a trusted name in the Indian packaging industry, renowned for its high-quality, reliable machinery. Their Fully Automatic Strapping Machines are built with durability and performance in mind, ensuring a long-lasting return on investment.

Features of YAKTECH's Fully Automatic Strapping Machines:

• User-friendly control panel for easy operation

• Adjustable strap tension settings

• Soft-start and stop functions for smooth operation

• High-speed strapping operation

• Durable construction for long-lasting performance
