About Us

YAK TECH is a leading engineering solution provider in beverage field & manufacturing.

YAK TECH has been established on 2024 and offer the complete engineering services in the field of bottling industry.Mr. Kotreshi Yeligar is Proprietor in this company has executed several bottling plant projects on turnkey basis in India .The company has the privilege of having very capable team of engineering who are quite experienced in project planning, manufacturing and engineering services on turnkey basis in the field of bottle packing industry.we offers our services in the following fields:

BOPP Labelling Machine, Water Filling Machine, Juice Filling Machine,

Shrink wrapping Machine, RO Plant

Use and trust

Spare Parts:

Labelling Machine Change Part, Nylon Guides, Worm Gears, SS Storage Tanks and all

kind of filling machine spare parts

Why us?

• Product, Service and support are renowned for top quality technology and reliability

• State of art manufacturing facilities and machinery

• Efficient technical support

• Strict delivery as per the time lines of the client.

Bangalore, Karnataka

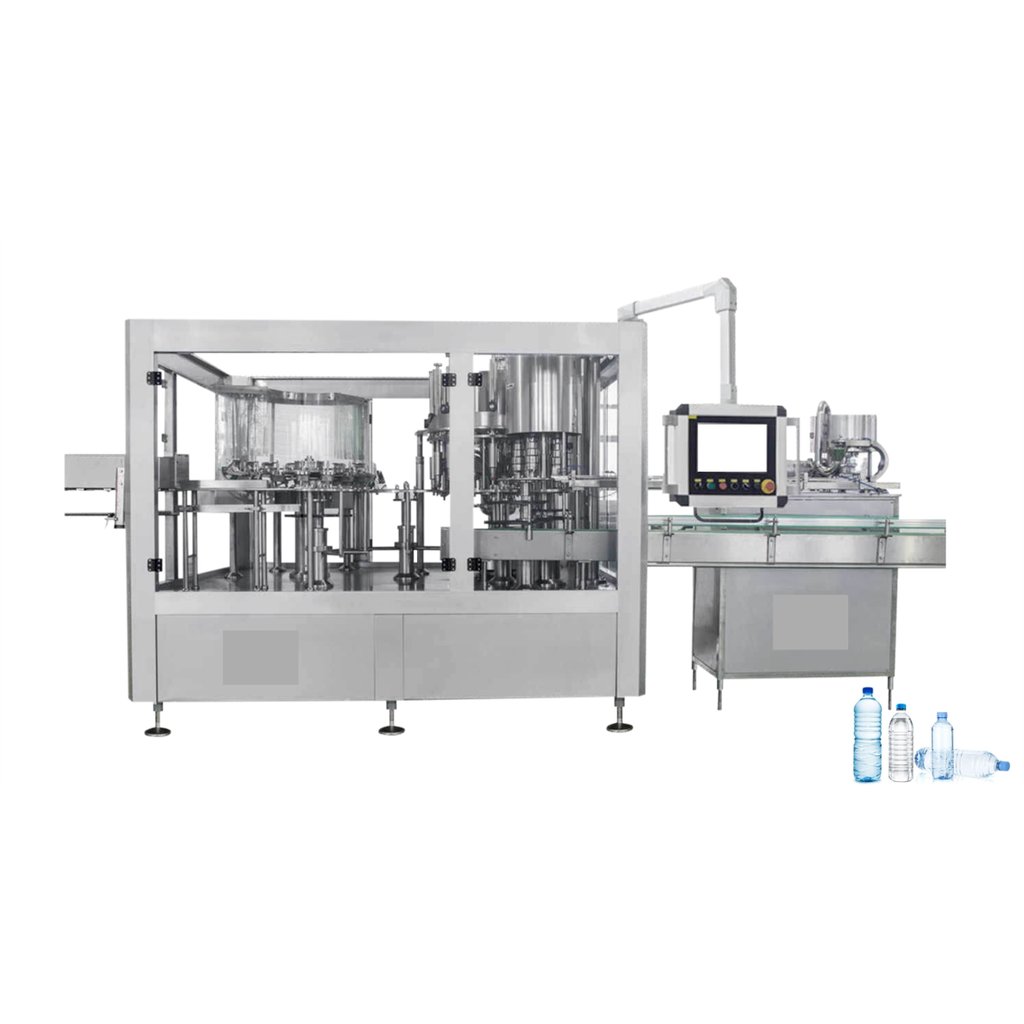

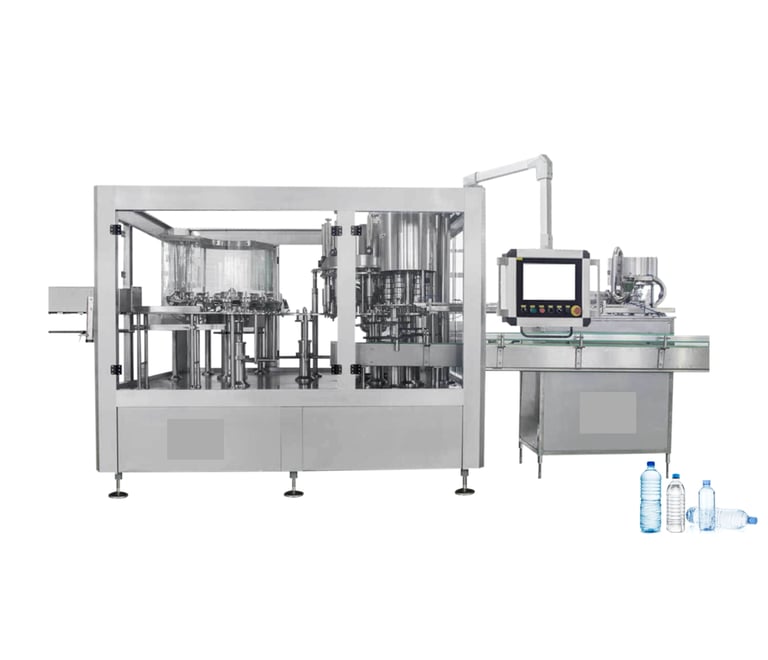

1. Water Rinsing Filling Capping Machine

Mineral Water Filling Machines

The complete bases frame of the machine is made of SS 304 Square Pipes & Sheet. The center Column assemble & start housing of the Machine is also made of SS 304 the filling valve are as per international Standard the speed of machine controlled by Siemens make variable frequency drive. the liquid level in the filler tank is automatically by electronic probe and pneumatic valve. the electrical panel is also made of SS 304 Material.

This machine is suitable for filling glass or pet bottles, from 0.2 It. to 2.0 It. bottles for products like mineral water, non-carbonated/Carbonated soft drinks & Soda etc. The conveyor for bottle transfer is also made of SS 304 Auxiliaries Required

Auxiliaries Required:

1. Automatic Cap Elevator

2. Inspection Light

3. Heat Shrink Tunnel

4. In-feed Air Conveyor

5. Out-feed slat chain Conveyor

6. Bottle Collecting Table

7. Rinser

8. Capper

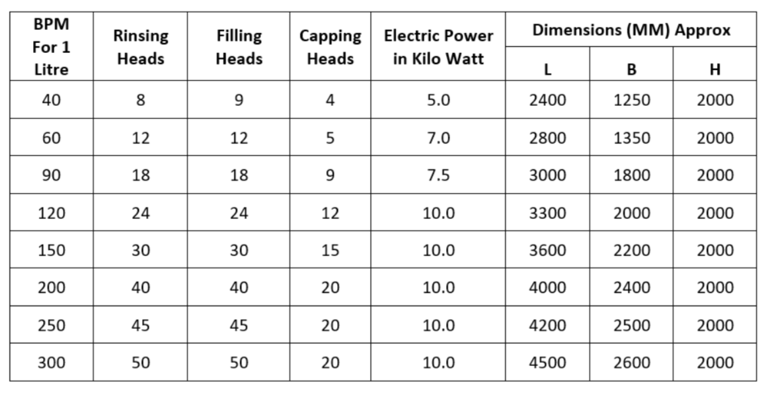

Specifications:

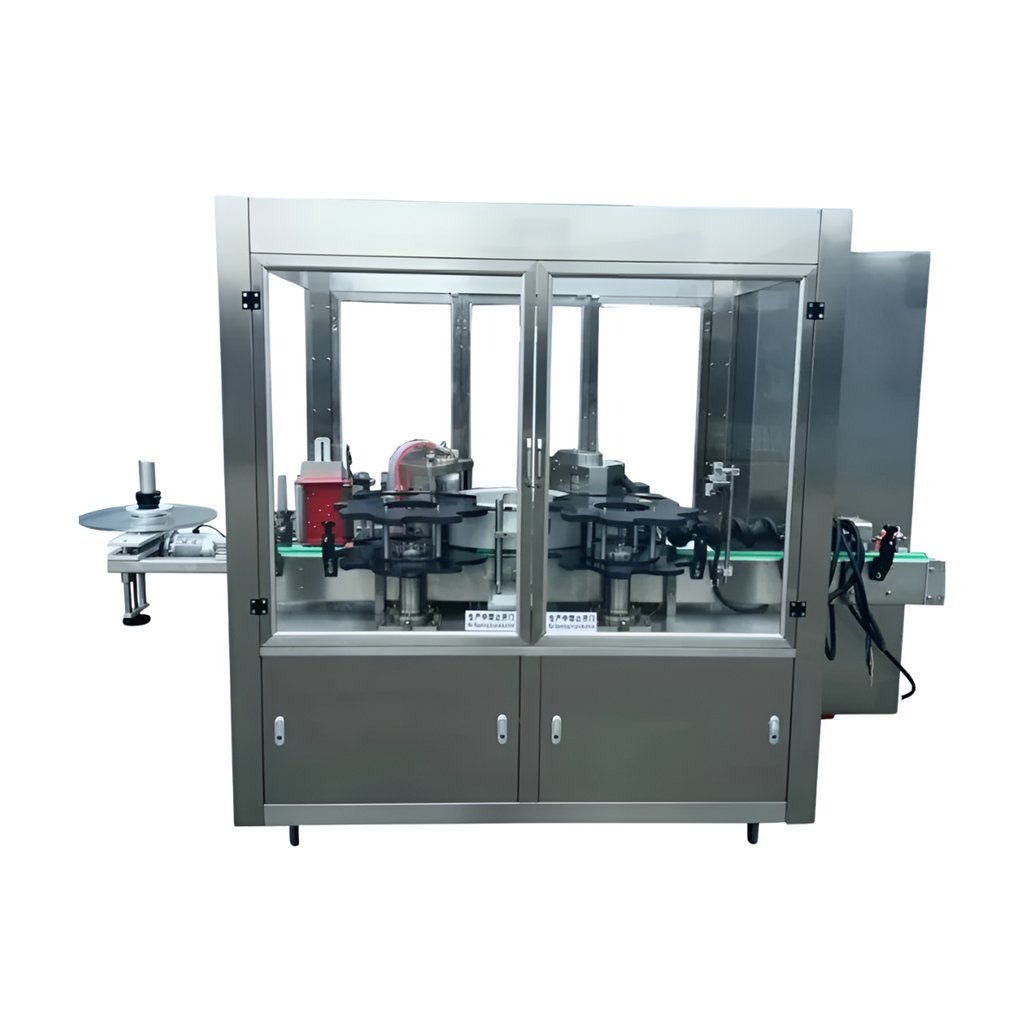

2. Roll Feed BOPP Labelling Machine

The continuous label roll-feed labelling machine is a fully automatic machine with electro-pneumatic controls. The base, label cutter assembly and glue assembly of the machine is made of Mild Steel and Alloy steels with duly painted / hard chromed. The conveyor, which is passing through the machine, is made of S.S.304 and chain is made of thermo-plastic. The shafts, column assembly and star housings are made of stainless steel. All guides and stars are made of S.S.304, UHMWPE,and Nylon. The machine is covered with S.S.304 frame and acrylic sheets work. The machineoperation is controlled by Delta make PLC/ Touch Screen and speed is controlled by Delta make

Variable frequency drive. This Machine is Available in Variety of 50 BPM To 400 BPM for 200 ML to 2.5 Ltr. Bottles.

Technical Details of Automatic Labelling Machine:

Electrical load:

1.15HP (10KW)

2. Vacuum pump is 2.0HP, 1440RPM, 440Vac.

3. MOTORS:

(A) Main motor is 3.0HP, 1440RPM, 440VAC.

(B) Conveyer motor is 1.0HP 1440RPM, 440Vac.

(C) Glue tank motor is 0.5HP 1440RPM, 440Vac.

(D) All motors are by make roto motive company.

4. Gearboxes.

(A) Main motor gearbox is 1:30 ratio, 100 frames, ALM 90.

(B) Conveyer motor gearbox is 1:30 ratio 60 frame, ALM50.

(C) Glue tank motor gearbox is 1:80 ratio, 40 framesALM30.

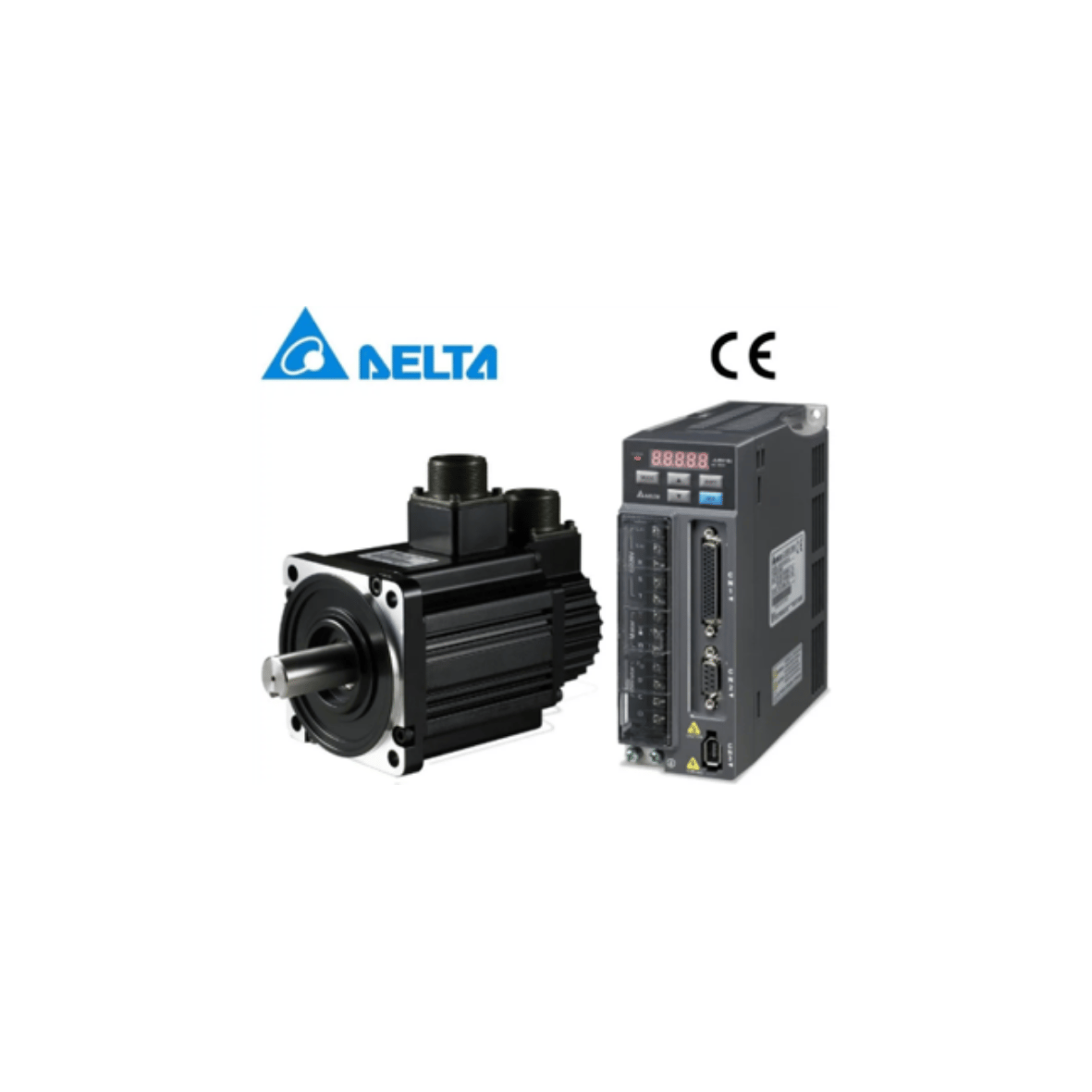

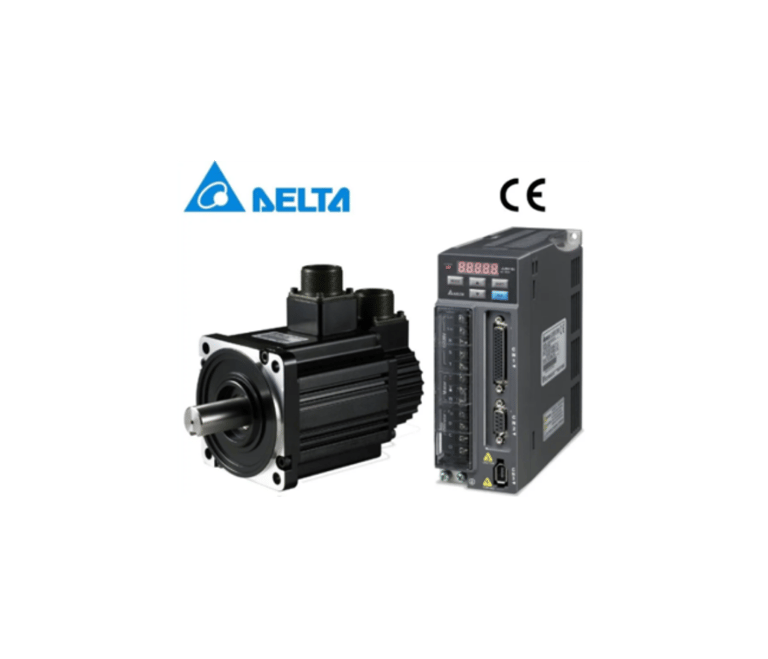

5. Servo motor is 2.0HP (1.5kw), 230VAC.that is delta company.

6. Encoder is 05 VDC, 5000 PPR, which is Panasonic Company.

7. SENSORS:

(A) Print mark sensor is 24VDC, which is data logic company.

(B) Photoelectric sensor is 24VDC, which is Panasonic company

(C) Proximity switch sensor is 05VDC, which is data logic company.

8. DRIVES:

(A) Main drive is 5HP (3.7KW), which is by delta make.

(B) In feed conveyer motor drive is 1HP (.75KW), which is by delta make.

(C) Out feed conveyer motor drive is 1HP (.75KW), which is by delta make.

9. PLC: PLC (Programmable Logic Control) is by delta make.

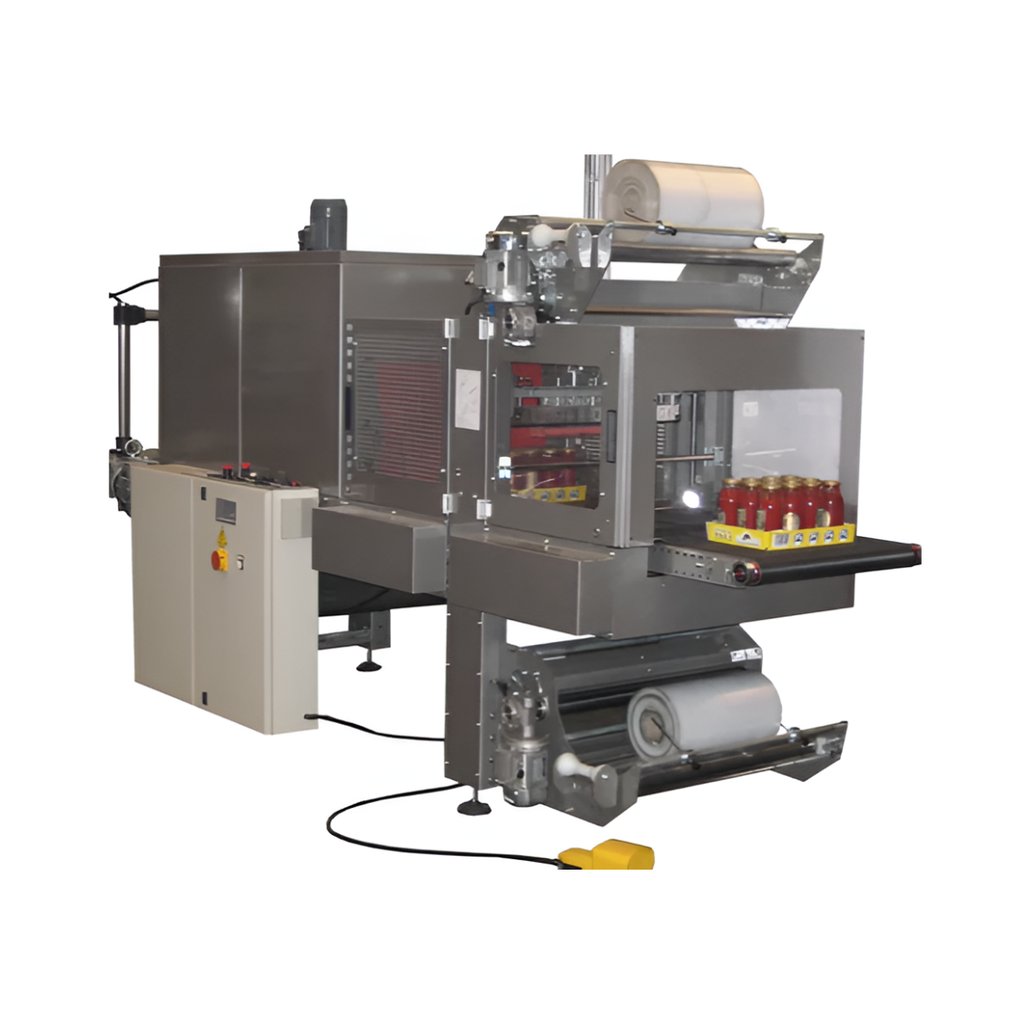

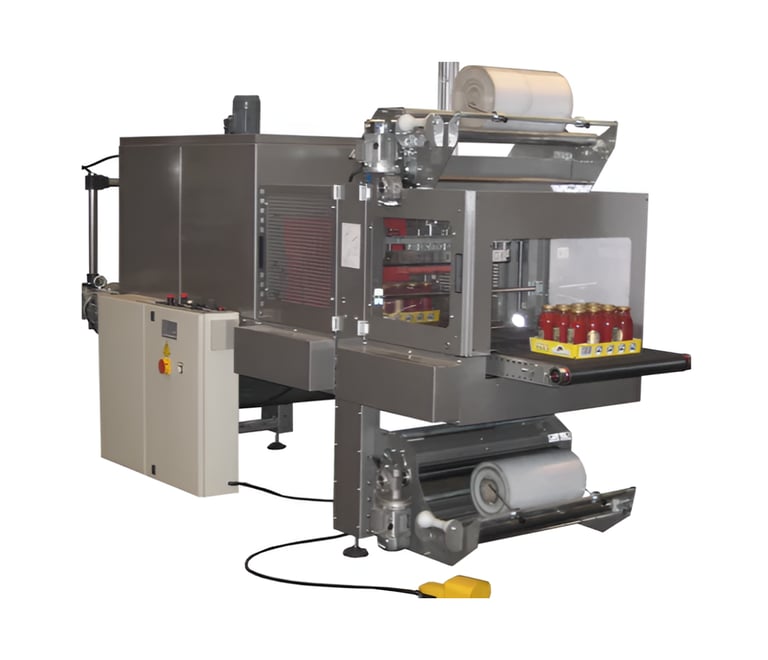

3. Automatic Shrink Wrapping Machine

Automatic Shrink-Wrapping Machine for Water/Beverage Bottle Packing 200ML to 2000ML.

• With Adjusting Guide for Packing of different size & packing of bottle

• Single Track Conveyor

• Motorized Feeder for Feeding of Bottle

• Heat Shrink Tunnel with Air Blower 6 to 8 fit.

• Heater Controlled with Temperature

• Controller as per requirement

• Supply 3 Phase, 400 to 420 V

• Operating with Display panel

• Air required 5 to 10 KG.

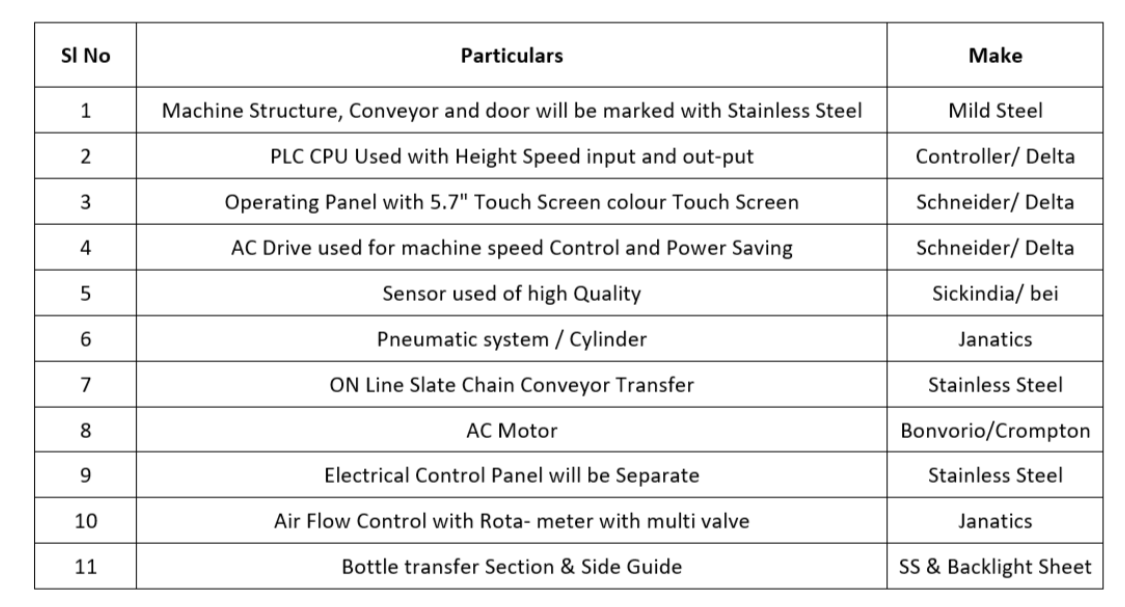

Specifications:

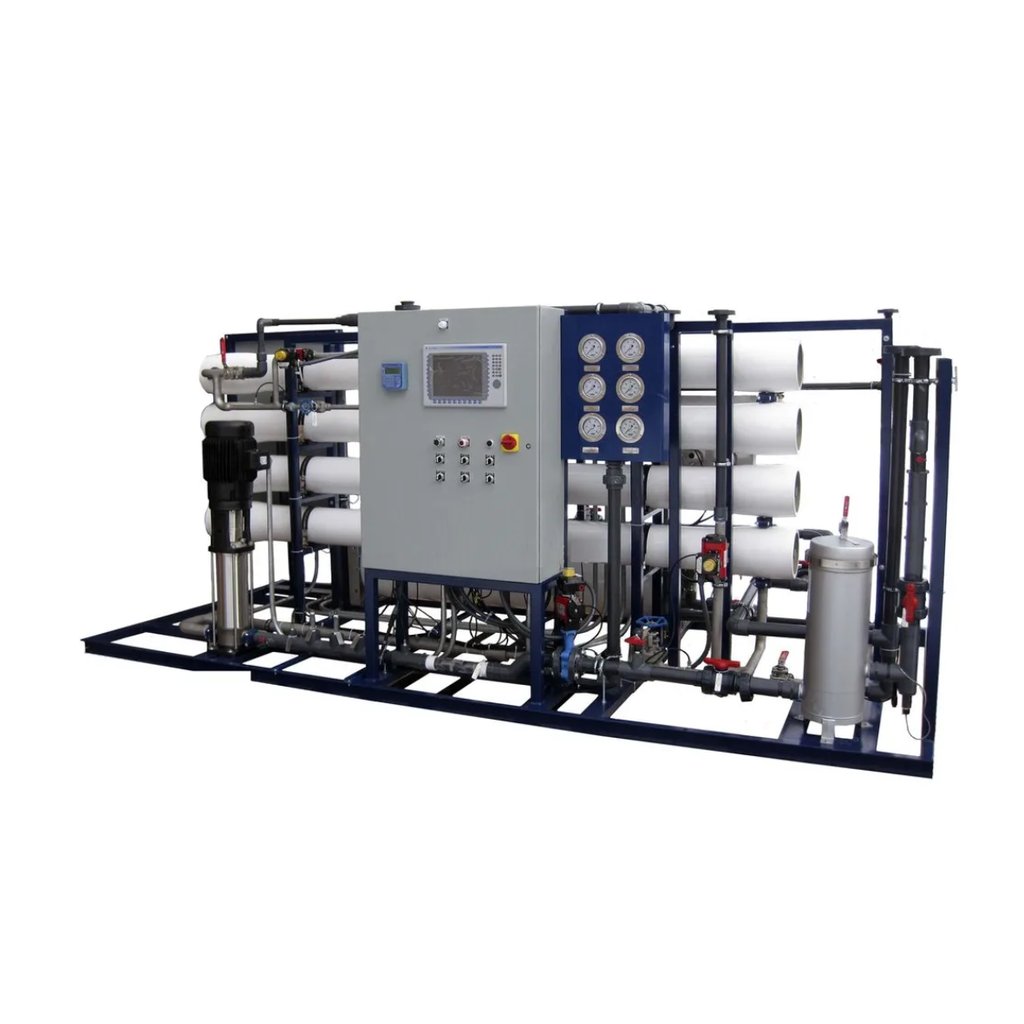

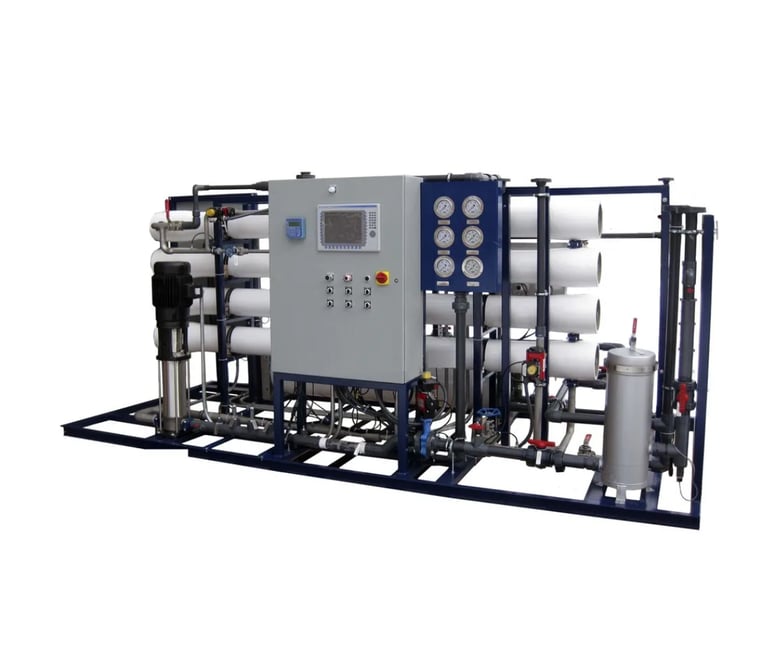

4. Reverse Osmosis (RO PLANT)

Reverse osmosis (RO) is a process of physical separation of dissolved solids and minerals present in water this technology uses the principle of osmosis wherein the mineral concentration of raw water is reduced by applying high pressure through a semipermeable membrane. Our offered reverse osmosis system are designed and developed to remove salt contamination from brackish water sources these systems feature improved water purify, low energy consumption and minimal co emission, we are well renowned quality driven company and follows different standards at our production wing.

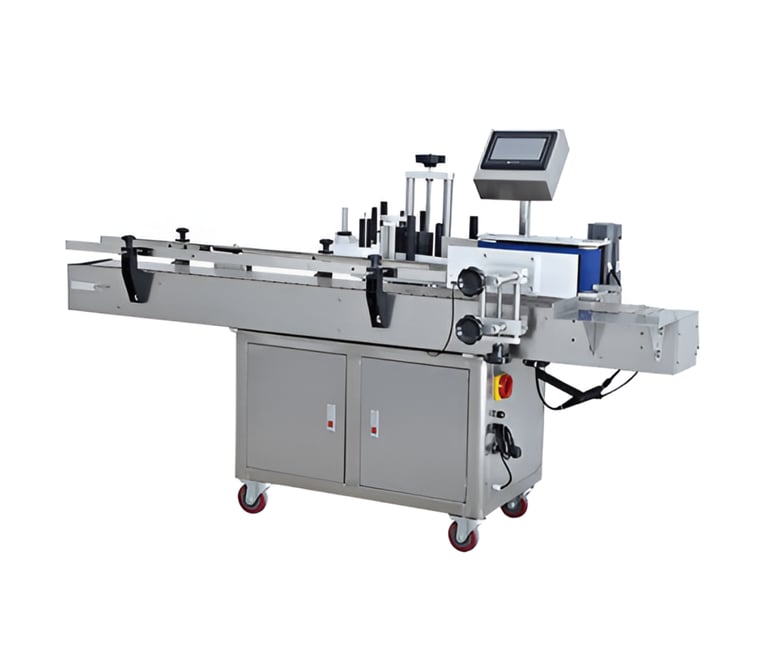

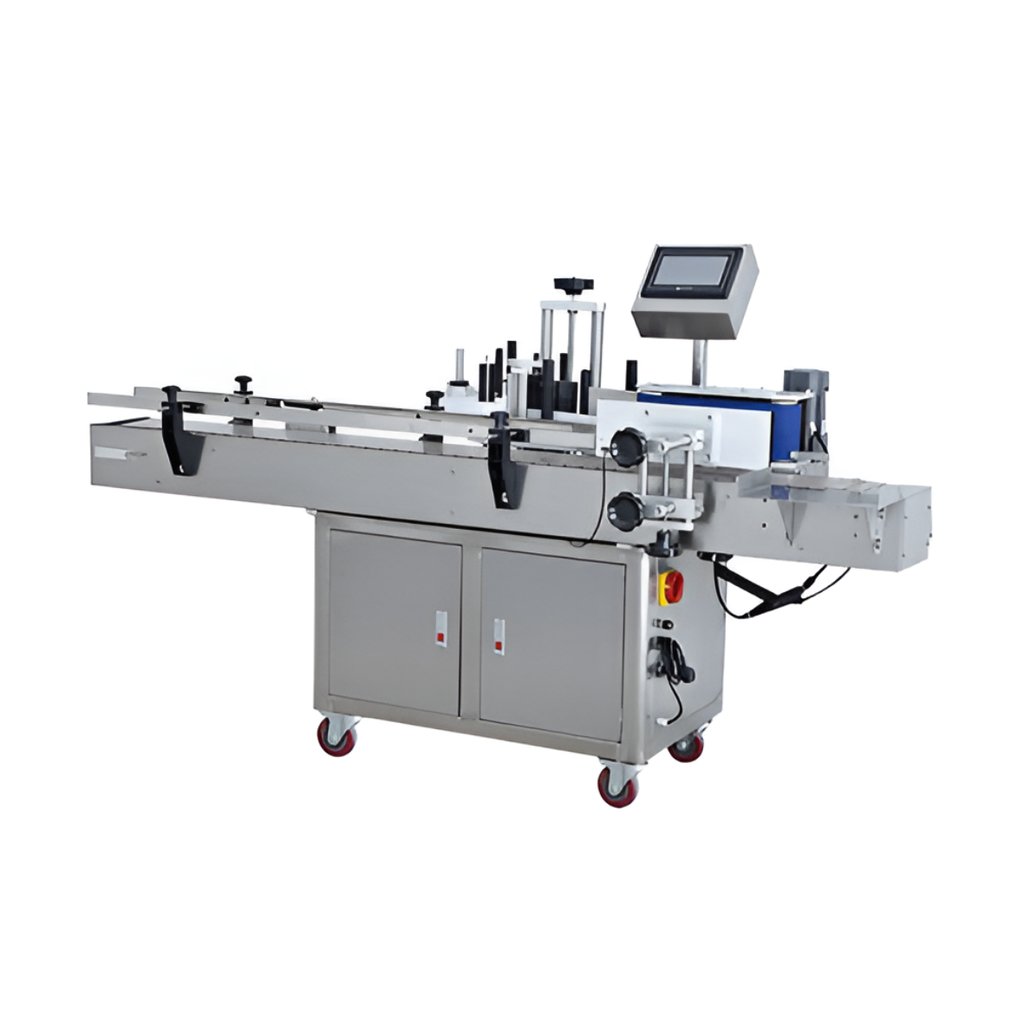

5. Automatic Sticker labelling Machine

OUR ALL PRODUCT LIST:

• Water Filling Machine

• CSD Filling Machine

• Juice Filling Machine

• Oil Filling Machine

• Liquor Filling Machine

• Bopp Labelling Machine Use and t

• Sticker Labelling Machine

• Shrink Sleeve Applicator

• Shrink Tunnel

• Semi Automatic Shrink Wrapping Machine

• Automatic Shrink Wrapping Machine

• All Types of Conveyor

• Cap Elevator

• Batch Coding Machine
